webtunel-gpu documentation

Overview

webtunel-gpu has two surfaces. webtunel.com is the account and dashboard surface where you register, add credit, submit tasks, and read history. super-proxy.webtunel.com is the runtime that holds the queue, worker leases, stream keys, and GPU provider control plane. They are split so the account portal stays stable while the runtime scales with load.

Quick start

Register on webtunel.com, add credit, create an API key, and submit your first task. The runtime reserves credit, leases the task to a worker, and records events and artifacts you can read on the dashboard.

POST /v1/tasks
Authorization: Bearer wt_live_...
Idempotency-Key: task-video-001-2026-06-13
Content-Type: application/json

{
  "job": "video-analysis",
  "video_id": "video-001",
  "source_url": "https://storage.example.com/private/video.mp4"
}

Authentication

Accounts use Supabase Auth for sessions, password reset, and JWT verification. API and runtime calls use bearer API keys (wt_live_...) carrying least-privilege scopes. Worker processes use a separate worker token to claim and complete leases.

Credits and billing

Credit is prepaid through Stripe and stored as an account balance. When a task is enqueued the runtime reserves estimated cost; if the balance is too low the task is rejected before any GPU boots. On completion the reservation settles against actual instance usage and the difference is released. Cancellation releases the unused reservation immediately.

Task submission

Submit work with POST /v1/tasks. Send an Idempotency-Key so retries from a flaky network return the same task instead of double-charging or double-running.

POST /v1/tasks
Authorization: Bearer wt_live_...
Idempotency-Key: task-video-001-2026-06-13
Content-Type: application/json

{
  "job": "video-analysis",
  "video_id": "video-001",
  "source_url": "https://storage.example.com/private/video.mp4"
}

A task payload is free-form JSON your worker interprets:

{
  "job": "video-analysis",
  "video_id": "video-001",
  "source_url": "https://storage.example.com/private/video.mp4",
  "metadata": {
    "customer": "demo",
    "priority": "normal"
  }
}

SDK and CLI examples

These examples are intentionally small. Production clients should keep API keys in environment variables, send an idempotency key for every task, and stream logs from the task detail endpoint.

Node

import { randomUUID } from "node:crypto";

const response = await fetch("https://super-proxy.webtunel.com/v1/tasks", {
  method: "POST",
  headers: {
    Authorization: `Bearer ${process.env.WEBTUNEL_API_KEY}`,
    "Content-Type": "application/json",
    "Idempotency-Key": randomUUID()
  },
  body: JSON.stringify({
    job: "video-analysis",
    video_id: "video-001",
    worker: "video-render-worker"
  })
});

if (!response.ok) {
  throw new Error(await response.text());
}

console.log(await response.json());

Python

import os
import uuid
import requests

response = requests.post(
    "https://super-proxy.webtunel.com/v1/tasks",
    headers={
        "Authorization": f"Bearer {os.environ['WEBTUNEL_API_KEY']}",
        "Content-Type": "application/json",
        "Idempotency-Key": str(uuid.uuid4()),
    },
    json={
        "job": "video-analysis",
        "video_id": "video-001",
        "worker": "video-render-worker",
    },
    timeout=30,
)
response.raise_for_status()
print(response.json())

CLI skeleton

webtunel worker register \
  --image ghcr.io/company/video-worker:1.0.0 \
  --gpu "RTX 4090" \
  --min-workers 0 \
  --max-workers 4 \
  --timeout 900

webtunel task submit payload.json --worker video-render-worker
webtunel task logs task_123 --follow
webtunel task artifacts task_123

Runtime and proxy

The runtime on super-proxy.webtunel.com owns the queue, worker leases, stream keys, and GPU provider control. Workers poll /v1/worker/tasks/claim for leased work and report back with complete or fail. The dashboard reads the state the runtime records.

Live capacity comes from the runtime snapshot, not from the billing ledger. Usage rows are kept for customer billing and history; an open usage row means the ledger has not received a stop time yet, while the live runtime count shows what Vast currently reports as running.

Stream keys

Stream keys give workers scoped, expiring access to private media instead of raw storage URLs. Keys carry a TTL and are revoked when a job is cancelled or a worker is considered unsafe.

POST /v1/stream-keys
Authorization: Bearer wt_live_...
Content-Type: application/json

{
  "job_id": "job_8842",
  "source_url": "https://storage.example.com/private/video.mp4",
  "ttl_seconds": 1800
}

# Worker receives a scoped, expiring URL:
# https://super-proxy.webtunel.com/stream/<stream_key>

Task events and artifacts

Every state change is recorded as a timeline event, and workers write artifacts (logs, outputs, files) against the task. Both surface on the dashboard task view.

POST /v1/tasks/{task_id}/artifacts
Authorization: Bearer wt_live_...
Content-Type: application/json

{
  "artifact_type": "log",
  "label": "worker output",
  "storage_path": "runs/{task_id}/output.txt"
}

Instances and live logs

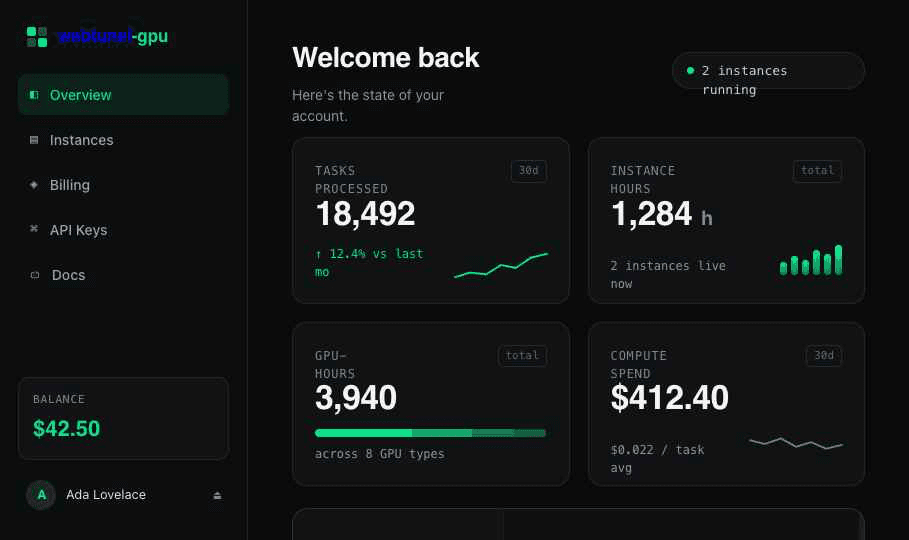

The instances page combines the live runtime count with billable usage rows. The live count answers what is running now; usage rows answer what was billed and for how long. Live logs stream worker stdout and runtime events into the dashboard while a task is still in flight.

Build a worker image and run a task end-to-end

The full path from a minimal worker handler to watching artifacts on the dashboard.

1. 1
   Create a minimal worker handler

   Write a loop that claims a task, does the work, posts an artifact, and completes the lease.

2. 2
   Build a Docker image

   Package the handler and its dependencies into a small reproducible image.

3. 3
   Push the image to a registry

   Push to any registry the runtime can pull from (Docker Hub, GHCR, or a private registry).

4. 4
   Register the image in the runtime

   Add the image reference on super-proxy.webtunel.com so the runtime can boot it on GPU capacity.

5. 5
   Create or select a workergroup

   Pick the GPU class and scaling bounds the workergroup uses to run your image.

6. 6
   Add credit

   Top up prepaid credit from the dashboard so the runtime can reserve task cost.

7. 7
   Submit a task

   Send POST /v1/tasks from the dashboard or API with an idempotency key.

8. 8
   Watch timeline, usage, logs, artifacts

   Open the task on the dashboard to follow events, instance usage, live logs, and artifacts.

9. 9
   Cancel or retry safely

   Cancel releases reserved credit; idempotency keys make retries safe to repeat.

1. Minimal worker handler

The handler claims a task, posts an artifact, and completes the lease — failing the lease on error so the task can be retried.

import os
import time
import requests

QUEUE_BASE_URL = os.environ["QUEUE_BASE_URL"]
QUEUE_WORKER_TOKEN = os.environ["QUEUE_WORKER_TOKEN"]
WORKER_ID = os.environ.get("WORKER_ID", "worker-local")

headers = {"Authorization": f"Bearer {QUEUE_WORKER_TOKEN}"}

while True:
    claim = requests.post(
        f"{QUEUE_BASE_URL}/v1/worker/tasks/claim",
        headers=headers,
        json={"limit": 1, "worker_id": WORKER_ID, "lease_seconds": 300},
        timeout=30,
    ).json()
    tasks = claim.get("tasks", [])
    if not tasks:
        time.sleep(5)
        continue

    task = tasks[0]
    task_id = task["task_id"]
    lease_id = task["lease_id"]
    try:
        requests.post(
            f"{QUEUE_BASE_URL}/v1/tasks/{task_id}/artifacts",
            headers=headers,
            json={
                "artifact_type": "log",
                "label": "worker output",
                "storage_path": f"runs/{task_id}/output.txt",
            },
            timeout=30,
        )
        requests.post(
            f"{QUEUE_BASE_URL}/v1/worker/tasks/{task_id}/complete",
            headers=headers,
            json={"lease_id": lease_id},
            timeout=30,
        )
    except Exception as exc:
        requests.post(
            f"{QUEUE_BASE_URL}/v1/worker/tasks/{task_id}/fail",
            headers=headers,
            json={"lease_id": lease_id, "error": str(exc)},
            timeout=30,
        )

2. Dockerfile worker image

FROM python:3.12-slim
WORKDIR /worker
RUN pip install --no-cache-dir requests
COPY worker.py .
CMD ["python", "worker.py"]

3. Build and push to a registry

docker build -t registry.example.com/webtunel-worker:1.0.0 .
docker push registry.example.com/webtunel-worker:1.0.0

4. Register the image and 5. select a workergroup

Add the pushed image reference on super-proxy.webtunel.com so the runtime can pull and boot it on GPU capacity, then create or select a workergroup that defines the GPU class and scaling bounds the image runs under.

6. Add credit

Top up prepaid credit from the dashboard billing page so the runtime can reserve task cost.

7. Submit a task

POST /v1/tasks
Authorization: Bearer wt_live_...
Idempotency-Key: task-video-001-2026-06-13
Content-Type: application/json

{
  "job": "video-analysis",
  "video_id": "video-001",
  "source_url": "https://storage.example.com/private/video.mp4"
}

8. Watch timeline, usage, logs, and artifacts

Open the task on the dashboard to follow timeline events, instance usage, live logs, and the artifacts your worker wrote with the example payload:

{
  "job": "video-analysis",
  "video_id": "video-001",
  "source_url": "https://storage.example.com/private/video.mp4",
  "metadata": {
    "customer": "demo",
    "priority": "normal"
  }
}

9. Cancel or retry safely

Cancelling a task releases the unconsumed credit reservation. Because submission is idempotent, retrying with the same Idempotency-Key is safe to repeat.

Admin credits

Operators grant, adjust, and audit credit balances from the admin credits page. Every change lands in a transaction ledger so balances are fully traceable.

Security

Supabase Auth backs sessions, API keys carry least-privilege scopes, stream keys are short-lived and job-scoped, and row-level ownership isolates tasks, keys, and invoices per account. Report suspected exposures via responsible disclosure.

FAQ

Get started

Create an account to add credit and submit your first task, or talk to us.
